INTELLISTAGE

STAGE RISERS

RISERS (LEGS)

Our Intellistage risers have cleverly used the strength of multiple triangles in their design to allow for unprecedented weight distribution. This original design enables the unit to support up to 750kgs per sqm when connected to an Intellistage stage platform. This is one of the highest load ratings in the industry.



Lightweight stage risers to suit all of our stage platforms.

Risers connect to stage panels by our unique built-in stage locking mechanism.

Our risers feature nine points of contact for even weight distribution of the stage panel.

Intellistage Australia folding aluminium stage legs

1mtr x 0.5mtr STAGE RISERS

1mtr x 1mtr STAGE RISERS

2mtr x 1mtr STAGE RISERS

STEP RISERS

Triangle & Quarter Round STAGE RISERS

WATCH A DEMO VIDEO

Learn more about Intellistage stage systems here.

Demo Video

Learn more about our Intellistage Stage Risers.

WEIGHT.

How much weight can an Intellistage platform support?

Intellistage platforms are capable of supporting 757 kgs per sqm. The total weight a platform can support ultimately depends on the platforms overall size.

HEIGHT.

How tall are Intellistage risers and what is the maximum safe stage height setup?

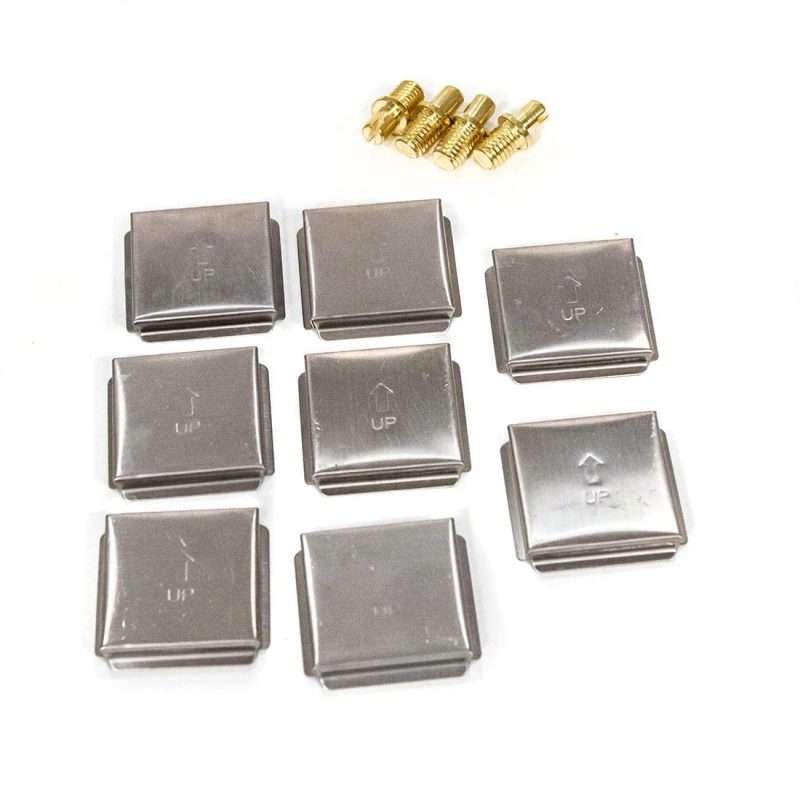

Intellistage risers are offered in 20cm, 30cm, 40cm, 60cm and 80cm. Intellistage risers can be double stacked to increase the stage height through the use of our ISREK hardware. The max height that an Intellistage system can be setup is 160cm.

Note: The finished height of the stage will be 3cm higher (stage riser height + 3cm stage platform)

ADJUSTMENT?

Are riser heights adjustable?

Riser heights are not adjustable. However, risers are interchangeable meaning a single platform could be placed on either an 8″ riser or a 32″ riser. Risers can also be stacked on top of each other to increase their height (up to two risers) through the use of ISREK hardware.

CONNECTION.

How are platforms locked or secured to risers?

Intellistage platforms lock to risers at platform corners through the use of an Allen key that is provided with each platform.

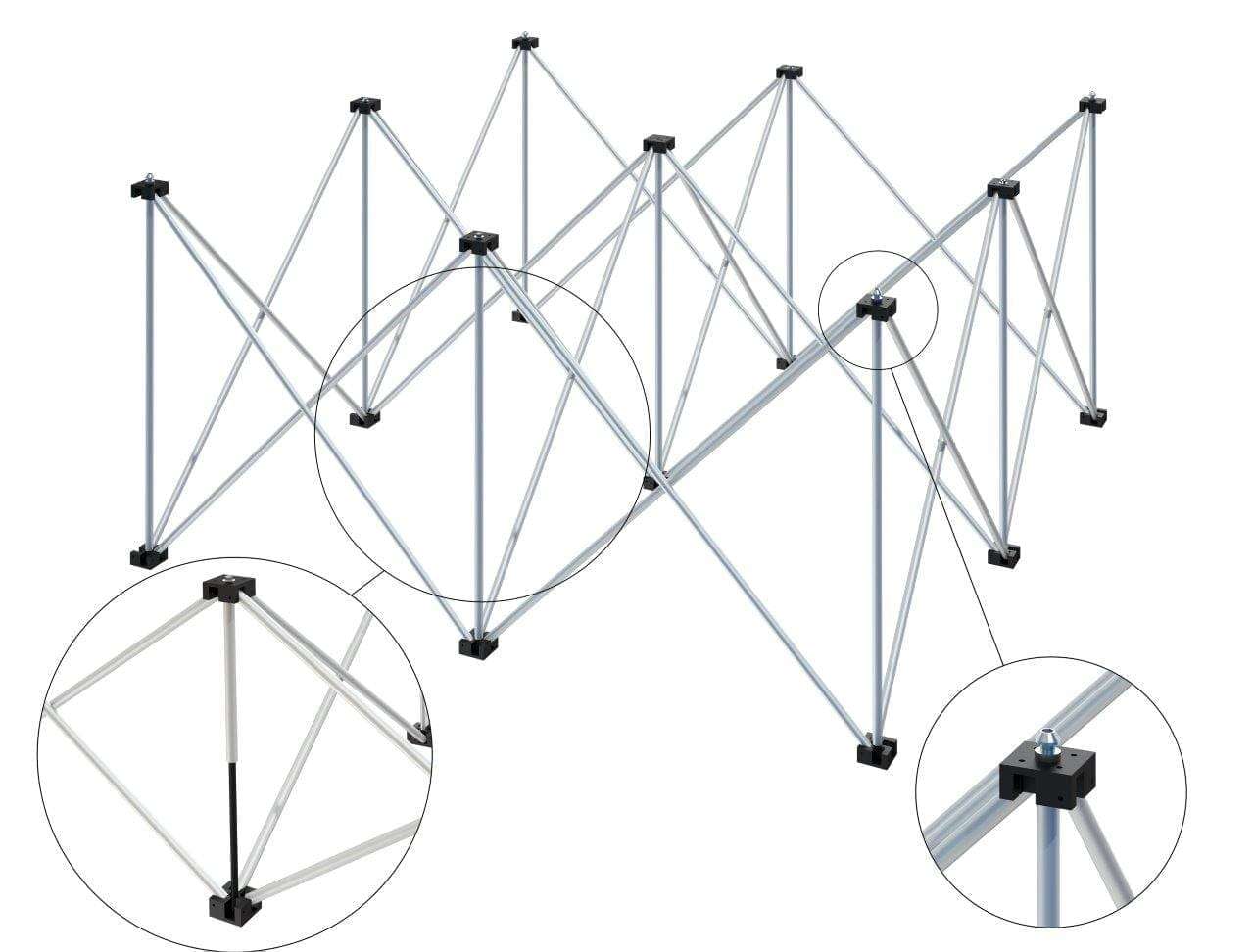

Stage Riser locking mechanisms

Securing stage panels to legs

Assembly 101!

Getting your stage system up and running has never been easier than this. You are literally minutes away from having a sturdy, professional presentation platform.

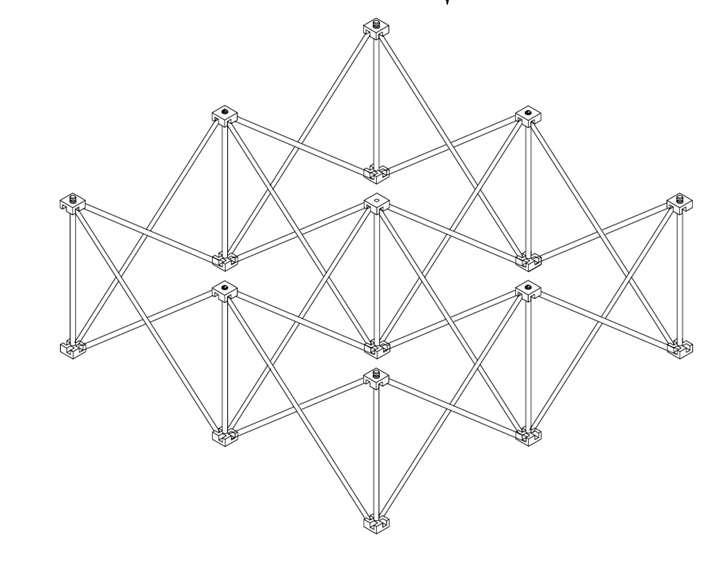

  1. Expand riser completely.

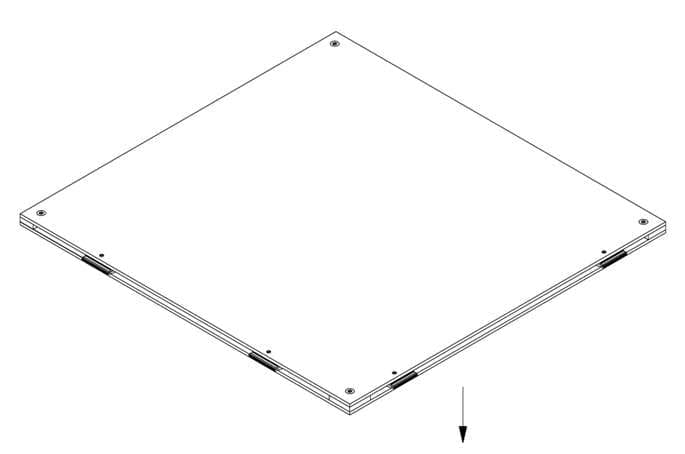

  2. Properly align platform and place onto riser. Verify that all riser to platform connection points and corner locking mechanisms are properly aligned in their platform hole.

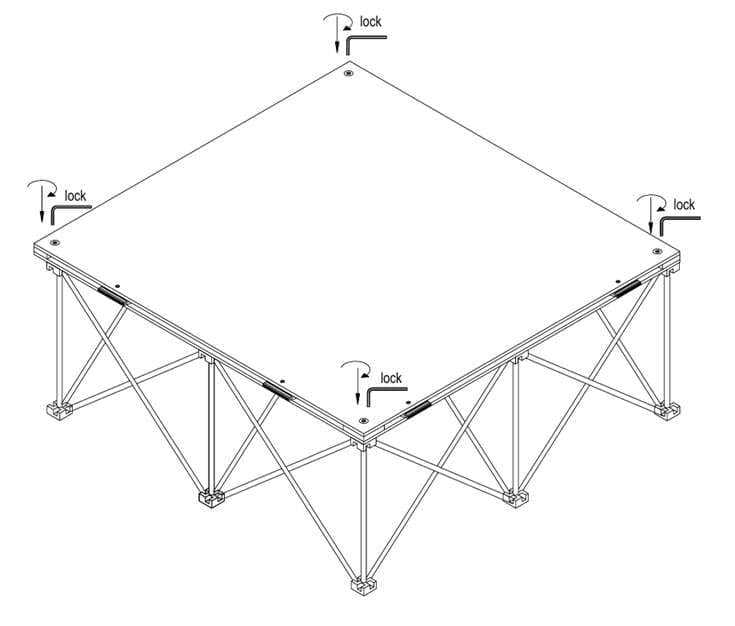

  3. Lock platform to riser by turning the corner locking screws clockwise with the included Allen key.

Stage riser benefits:

Portability & Compact Storage.

  • Collapsible design: The risers fold down compactly, making transport and storage easy.

  • Ideal for mobile events, touring productions, or places with limited storage space.

Modular Flexibility

  • You can customize your stage configuration (height, size, shape).

  • Easily add or remove sections as needed, with heights available in 20cm, 40cm & 60cm.

Lightweight but Strong

  • The risers are made of high-strength aluminium, supporting significant weight without being bulky.

  • Each platform supports up to 750kg per sqm.

Compatible Accessories

  • Add stairs, skirting, guardrails, and storage carts.

  • Easily integrate with other Intellistage products for more complex stage builds.
