INTELLISTAGE
STAGE PARTS & ACCESSORIES
PARTS
Since your stage was made to be portable, it only stands to reason that parts such as stage risers and joiners will go missing or become broken from time to time. Intellistage is designed that you can replace certain parts yourself.
PLATFORM FEATURES
Easy Assembly
Modular platforms with built-in panel connectors for fast and easy assembly.

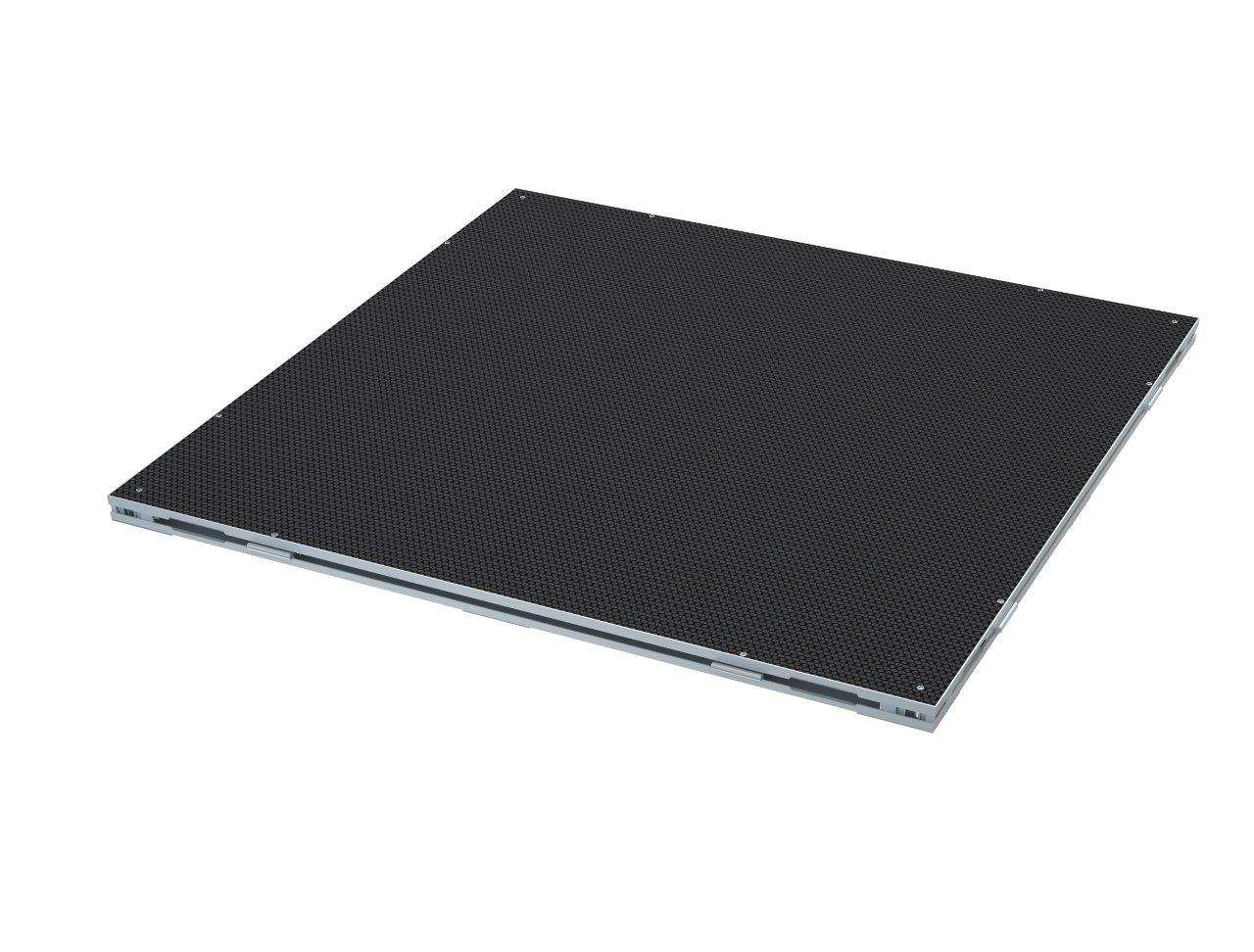

Finishes
Choose from our heavy-duty carpet, black industrial or tuff-coat finishes.
Weight Rated
Our platforms are rated to carry up to 750kgs per sqm!
Frequently Asked Questions
Learn more about Intellistage stage systems.
1What sizes platforms are available?
Intellistage platforms are available in 1mtr x 1mtr and 2mtr x 1mtr internationally. Steps, triangles and quarter round platforms are also available.
2What finishes are available?
Platforms are available in a grey carpet finish, black textured industrial finish or a rugged black Tuffcoat finish.
3How much weight can an Intellistage platform support?
Intellistage platforms are capable of supporting 757 kgs per sqm. The total weight load a platform can support ultimately depends on the platforms overall size.
4How tall are Intellistage risers and what is the maximum safe stage height setup?

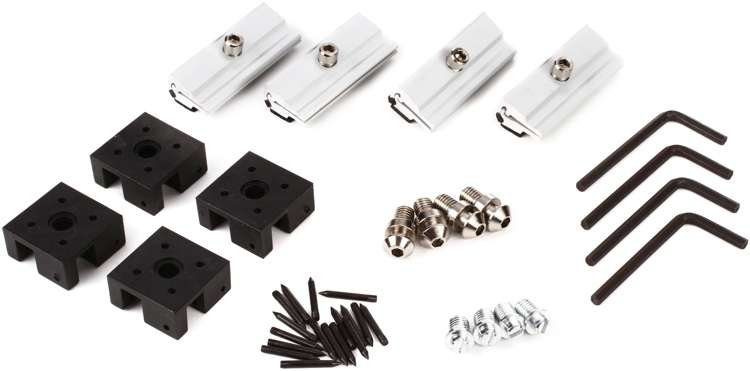

Intellistage risers are offered in 20cm, 30cm, 40cm, 60cm and 80cm. Intellistage risers can be double stacked to increase the stage height through the use of our ISREK hardware. The max height that an Intellistage system can be setup is 160cm.
5Are riser heights adjustable?
Riser heights are not adjustable, however risers are interchangeable meaning a single platform could be placed on either an 8″ riser or a 32″ riser. Risers can also be stacked on top of each other to increase their height (up to two risers) through the use of ISREK hardware.
6Will steps be required for my stage configuration and is any additional hardware required?
We recommend the use of steps on stages taller than 8″ or 20cm. Each step also requires 1 package of ISSJ hardware to properly secure it to its adjoining step or stage.
7How are platforms locked or secured together?

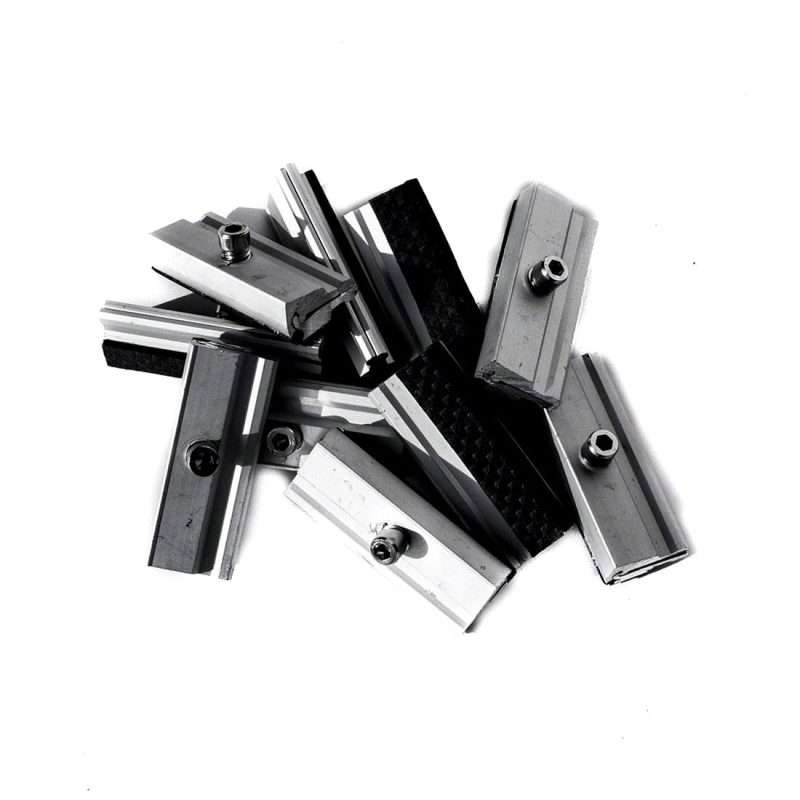

Each Intellistage platform has an integrated locking mechanism that secures all platforms together. The mechanism is operated through the use of an Allen wrench hex key that is provided with each platform. For storage the hex key stores away into the aluminium stage profile.
8How are platforms locked or secured to risers?
Intellistage platforms lock to risers at platform corners through the use of an Allen wrench hex key that is provided with each platform.
9How much room does an Intellistage system take up when stored?
In most cases an Intellistage system never takes up a larger footprint than a single platform. All components can be stacked and stored neatly for minimal storage space required.
